Cudy GS1024E 24-Port Gigabit Rackmount Switch

(0) 0 Reviews 0 Orders 0 Wish listed

Product Code: 164592

Key Features

Key Features
Model: GS1024E
Switching Capacity: Max. 48 Gbps, Web Management
Forwarding Rate: Max. 35.712 Mpps
Ports: 32 x 10/100/1000Mbps Gigabit Ethernet
Range: 250-meter Transmission Extend Mode ports

AED12,800.00 ~~AED13,100.00~~

Quantity :

Quantity:

Total price :

(Tax : )

Overview
Reviews

Specification

Main Feature
Type	Managed Switch
Port	24 x 10/100/1000Mbps Gigabit Ethernet
Transmission Method	Store-and-Forward
Data Transmission Rate	Cat. 3 or higher cable: 100 meters at 10 Mbps Cat. 5 or higher cable: 100 meters at 100 Mbps Cat. 5e or higher cable: 100 meters at Gigabit Cat. 5e or higher cable: 250 meters at 10 Mbps Cat. 6 or higher cable: 150 meters at Gigabit
MAC Address Table	8192
Environment	Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing
Hardware Features
Interface	Gigabit RJ45 Ports: 24 Extend Mode Ports: #1~#22 VLAN Mode Ports: #1~#22
LED	Power Speed/Link/ACT of Each Ethernet Port
Power Supply	Power Methods: AC AC: 90~260V 50/60Hz Max Power Consumption: 7.8W Idle Power Consumption: 4.5W
Dimensions (L x W x H)	440×180×44 mm 17.32×7.09×1.73 inches
Weight	1690 g (59.61 oz.)
Manufacture Warranty
Warranty	1-Year

Description

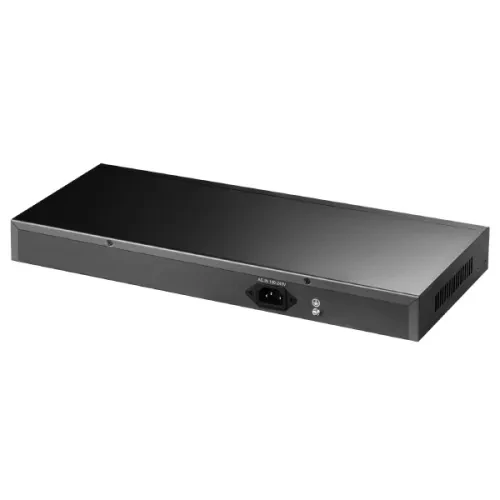

Cudy GS1024E 24-Port Gigabit Rackmount Switch

The Cudy GS1024E 24-Port Gigabit Switch is designed for commercial, enterprise, and sophisticated residential networks. With 24 Gigabit Ethernet ports, it offers dependable and fast data transfer, with a maximum switching capacity of 48 Gbps and a forwarding rate of 35.712 Mpps. This Cudy Managed Switch provides both web management and SNMP. The Cudy GS1024E 24-Port Network Switch has VLAN capabilities, including 802.1Q, MTU, voice, and port-based VLANs, allowing users to separate networks for better security and traffic management. Advanced QoS capabilities like 802.1p, DSCP, and port-based QoS prioritize vital data, resulting in smooth video conferencing, VoIP conversations, and gaming performance. The Cudy GS1024E 24-Port Gigabit Managed Switch supports STP/RSTP protocols and has critical Layer 2 management capabilities like as port mirroring, static aggregation, and loop prevention. IGMP and DHCP snooping improve multicast performance while limiting unwanted access. The switch has three preset modes—Managed, VLAN, and Extend—that may be configured using a physical DIP switch for easy setup. The Cudy GS1024E 24-Port Gigabit Managed Switch features extend mode, which allows data transmission up to 250 meters on ports 1-22 at 10 Mbps, making it suitable for surveillance systems. The switch performs huge data transfers effectively, thanks to its 8,192-entry MAC address table, 4 Mbit packet buffer, and jumbo frame capabilities of up to 15 KB. The Cudy GS1024E 24-Port Switch uses energy-saving technology and supports IEEE 802.3az protocols, which reduce power usage based on network activity. It uses an AC power input of 90-260V, 50/60Hz, and has a maximum power consumption of 11W and an idle usage of 6.8W.

Buy Cudy GS1024E 24-Port Gigabit Switch from Fast Deals

In Bangladesh, you can get original Cudy GS1024E 24-Port Gigabit Switch From Fast Deals. We have a large collection of latest Cudy Switch to purchase. Order Online Or Visit your Nearest Fast Deals Shop to get yours at lowest price. The Cudy GS1024E 24-Port Gigabit Switch comes with 1 years warranty.
